Lighting Output (LO)

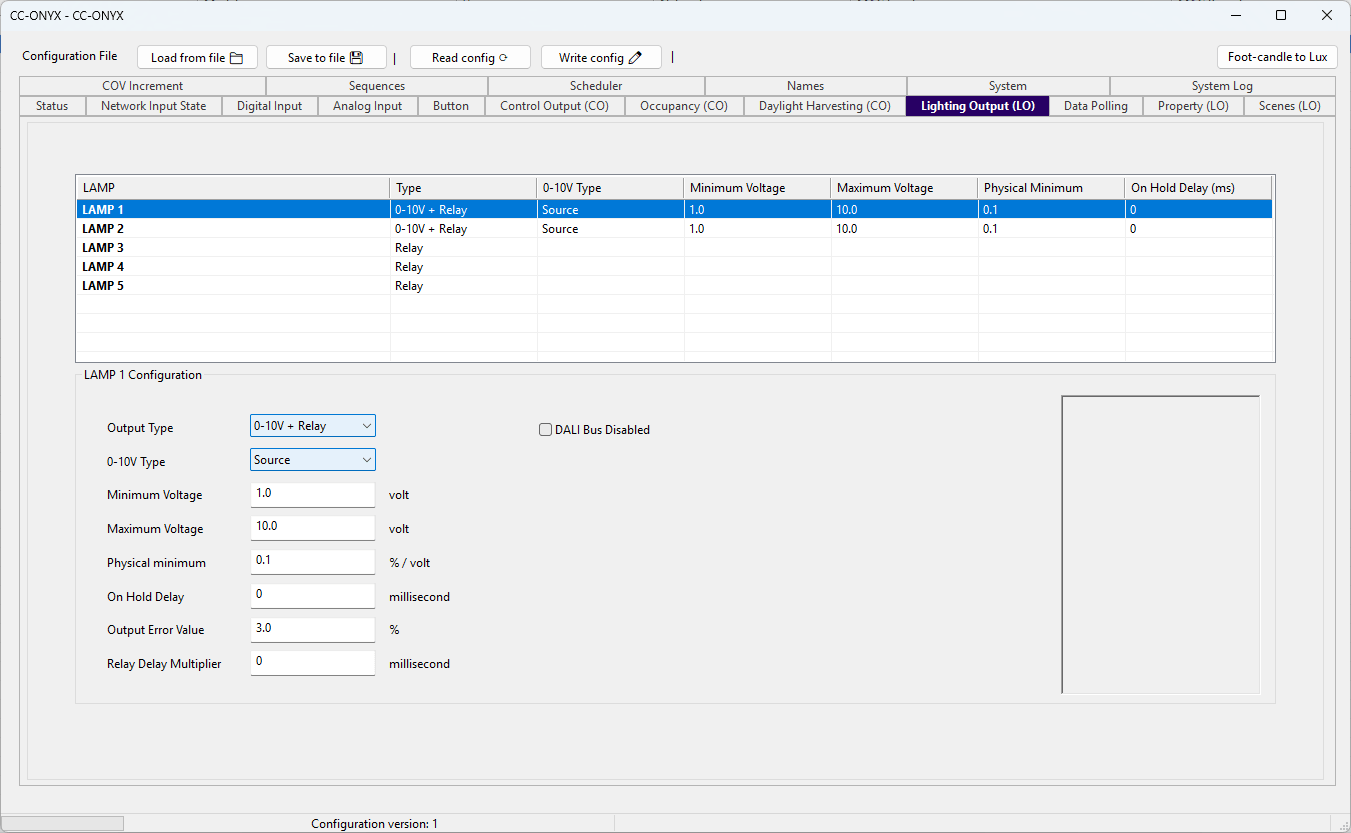

The Lighting Output tab configures the five light outputs, LAMP 1 to LAMP 5. The list at the top shows every light output with its current settings. Select a row to edit it in the Configuration panel below.
Lighting output list
| Column | Description |
|---|---|
| LAMP | Name of the light output (LAMP 1 to LAMP 5). |
| Type | Output type driving the load (Relay or 0-10V + Relay). |
| 0-10V Type | Whether the 0-10V output is Sink or Source. Shown only for outputs that use the 0-10V output. |
| Minimum Voltage | Minimum value of the 0-10V output, in volts. |
| Maximum Voltage | Maximum value of the 0-10V output, in volts. |
| Physical Minimum | Voltage used to turn off the output with the relay. |
| On Hold Delay (ms) | On hold delay applied when the output turns from OFF to ON, in milliseconds. |
Configuration
Edit the selected light output with the fields in the Configuration panel. The panel title shows which output is being edited, for example LAMP 1 Configuration. The fields that apply depend on the selected Output Type.
| Field | Description |
|---|---|
| Output Type | Enable the 0-10V output (0-10V + Relay) or disable it (Relay). |
| 0-10V Type | Enable the 0-10V Sink or Source output. Applies only when the 0-10V output is enabled. |
| Minimum Voltage | Minimum value of the 0-10V output, in volts. Range 0.0 to 10.0 V. |
| Maximum Voltage | Maximum value of the 0-10V output, in volts. Range 0.0 to 10.0 V. |
| Physical minimum | Voltage used to turn off the output with the relay, in volts. Range 0.0 to 10.0 V. This value corresponds to the Physical Minimum Level when using DALI. |
| On Hold Delay | Time the output stays at its maximum before reaching the required level when the output turns from OFF to ON, in milliseconds. This warms up the tubes when turned ON. This value is usually 0 for LED lamps. |
| Output Error Value | Maximum allowed difference between the 0-10V command and the measured feedback before the output is flagged in error, in volts. When exceeded, the reliability property of the BACnet objects is set to no-output and DALI reports a lamp failure status. |
| Relay Delay Multiplier | Delay between the activation of the relay, in milliseconds. This is multiplied with the network address to allow each device to have a different action time. |
| DALI Bus Disabled | When checked, this output does not appear on the DALI bus. |
| BACnet Dim Mode | Transition applied to BACnet writes on this output. Fade uses the configured fade time, No Fade applies the value immediately. |
