Overview

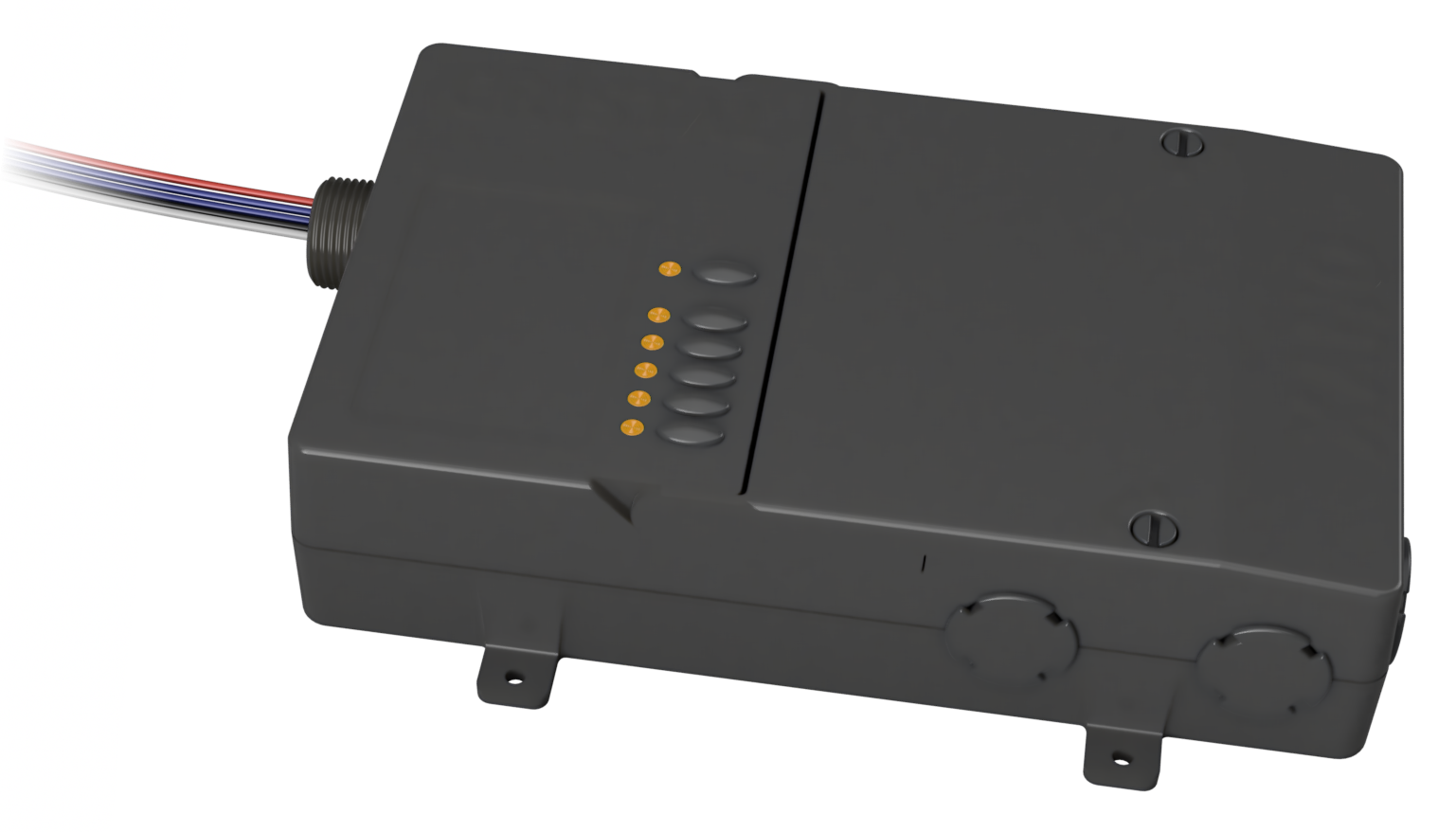

General Description
The CC-ONYX is a 2 zones 0-10V dimming room controller with 20 A relays dedicated to lighting control.
It is designed to integrate several accessories such as a light level sensor, occupancy sensors and wall switches.
The Quick Connect accessories for CC-ONYX allow connection of wall switches, light level sensors, and occupancy sensors using a single cable.
It has 3 dry contact outputs for connection to HVAC systems, building automation systems (B.A.S.) or power pack control.
It has 3 dry contact inputs for the connection of the HVAC system or the building automation system (B.A.S.), for demand response or other functionalities.
It can be used completely independently. It can also be controlled from a BACnet MS/TP or DALI communication network.
CC-ONYX makes it possible to create a simple and effective lighting control automation system.
Specifications
| Specification | Value |
|---|---|
| Power Supply | 120-347 Vac, 50/60 Hz |
| Dimensions (L x W x H) | 9” x 5.5” x 2.1” [228 x 139 x 53 mm] |
| Threaded Nipple Dimensions | 1” (NPT) [2.54 cm] |
| Low Voltage Holes | 3 x ¾” (NPT) [3 x 19.05 mm] |
| Surface Mounting Tab Fixations | 4 x 0.17” holes for #8 US screws [4 x 4.2 mm holes for M4 screws] |
| Relays Switching Capacity | 2 x 120-277 Vac, 20 A Standard / Electronic ballast 2 x 347 Vac, 16 A Standard / Electronic ballast |
| Dimming Outputs | 2 x 0-10 Vdc (50 compatible sink drivers, maximum 10 mA source drivers) |
| Dry Contact Inputs | 8 x 10-24 Vdc (Wall-switches, occupancy sensors, demand response, etc.) |
| Analog Inputs | 2 x 0-10 Vdc (Light level sensor for daylight harvesting, potentiometer, etc.) |
| Dry Contact Outputs | 3 x 30 Vac / Vdc, 200 mA |
| Supply Outputs | 1 x 24 Vdc, 250 mA |
| Buttons and LED Indicators | 6 |
| RTC Battery | CR1220 |
| Operating Temperature | 0 °C to 40 °C [32 °F to 104 °F], indoor use only |
| Storage Temperature | -40 °C to 85 °C [-40 °F to 185 °F] |
| Communications | BACnet MS/TP (⅛ Unit Load) DALI (2 mA load) |
| Certifications | UL 916 UL 2043 Plenum rated CSA C22.2 NO. 205 FCC – part 15 ASHRAE 90.1 compliant NECB compliant |

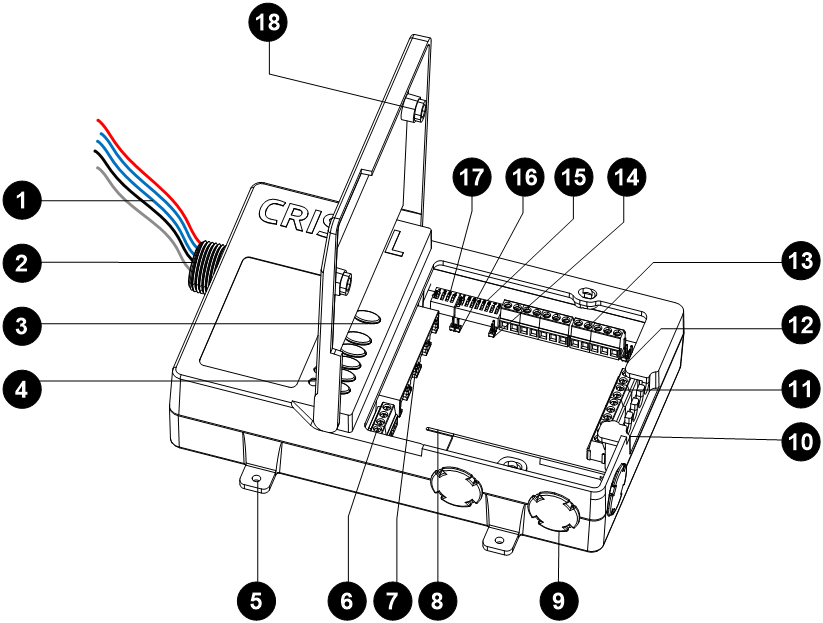

Overview
Product
| Number | Description |
|---|---|
| 1 | 5 x lead wires for power supply and relays |
| 2 | 1 inch [2.54 cm] (NPT) threaded nipple with lock nut |
| 3 | 6 x buttons for tests, configuration and reset |
| 4 | 6 x LED indicators for status |
| 5 | 4 x mounting tabs for surface fixation with screws |
| 6 | Screw type terminal blocks for inputs |
| 7 | 4 x RJ45 connectors for compatible ONYX Quick Connect accessories |
| 8 | Access for the RTC battery |
| 9 | 3 x ¾” [19.05 mm] (NPT) holes with covers |
| 10 | 4 x openings for cables of the ONYX Quick Connect accessories |
| 11 | Screw type terminal blocks for outputs |
| 12 | 3 x jumpers for configuration options |
| 13 | Screw type terminal blocks for communication networks and inputs |
| 14 | Jumper for the internal common selection |
| 15 | Dipswitches for the scenarios |
| 16 | Jumper for activating +24V OUT for the ONYX Quick Connect accessories |
| 17 | Dipswitches for RS-485 communication and configuration |
| 18 | 2 x cover locks |

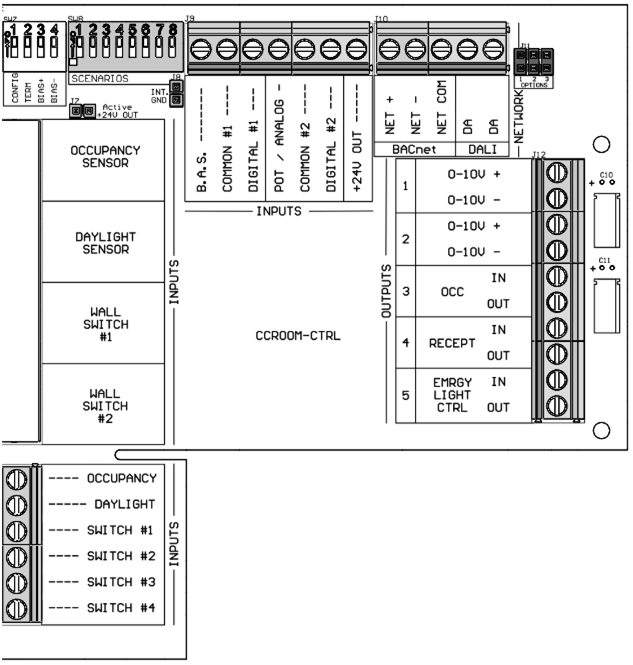

Terminals
 |
|---|

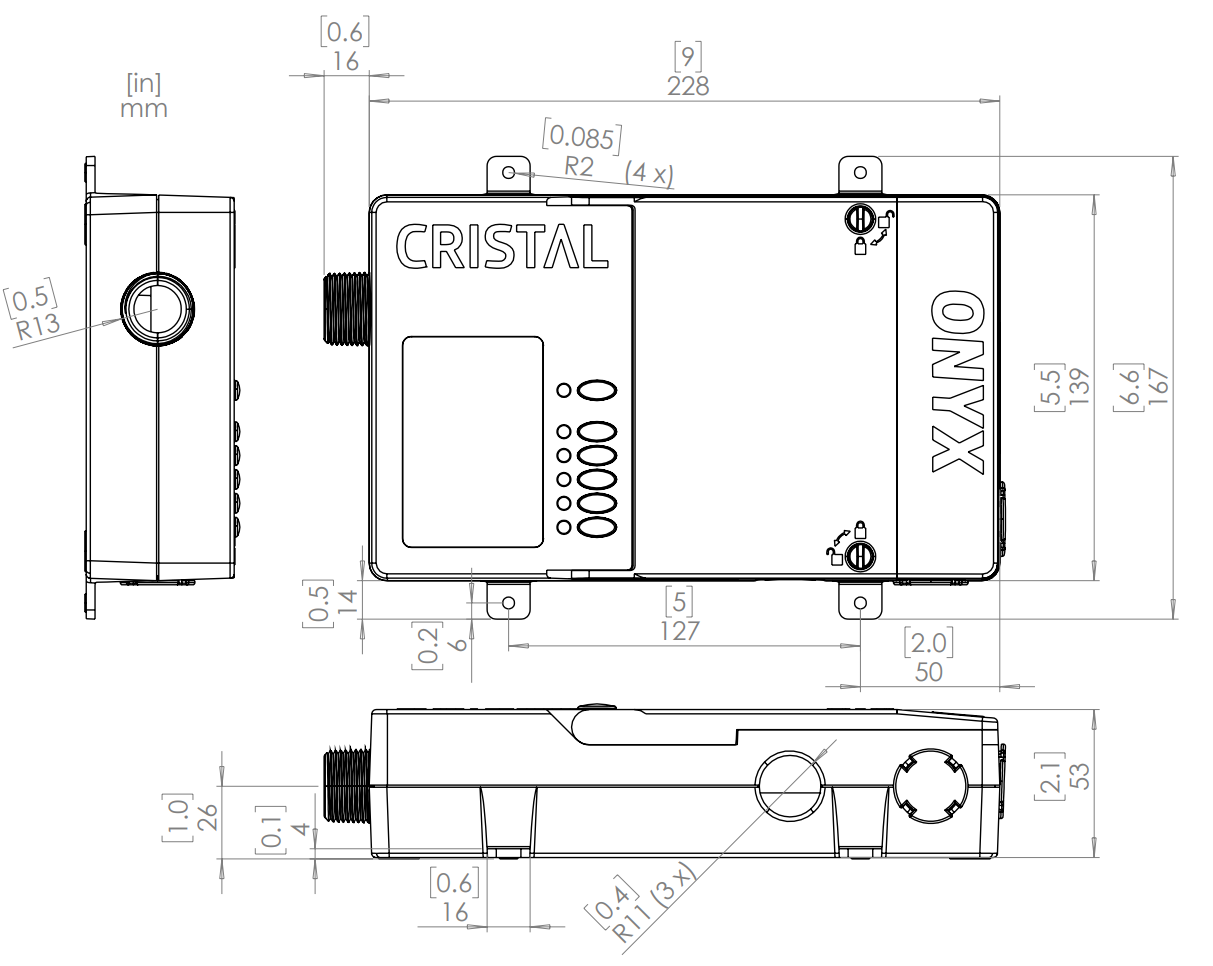

Dimensions
Safety Warnings
 | WARNING: ELECTRICAL RISK Turn off the power supply before the beginning of the installation. Otherwise, it can cause electrical shocks and damage the equipment. |
|---|
-
This device is intended for indoor use only. Do not use outdoors.
-
It should not be installed near an electric heater, gas source or in a very humid/wet environment.
-
This product should always be installed by a qualified professional and should be installed in accordance with national and local electrical codes.
-
If it is installed contrary to the manual, Cristal Controls cannot guarantee its proper functioning and the application of its guarantee.
