Network Input State

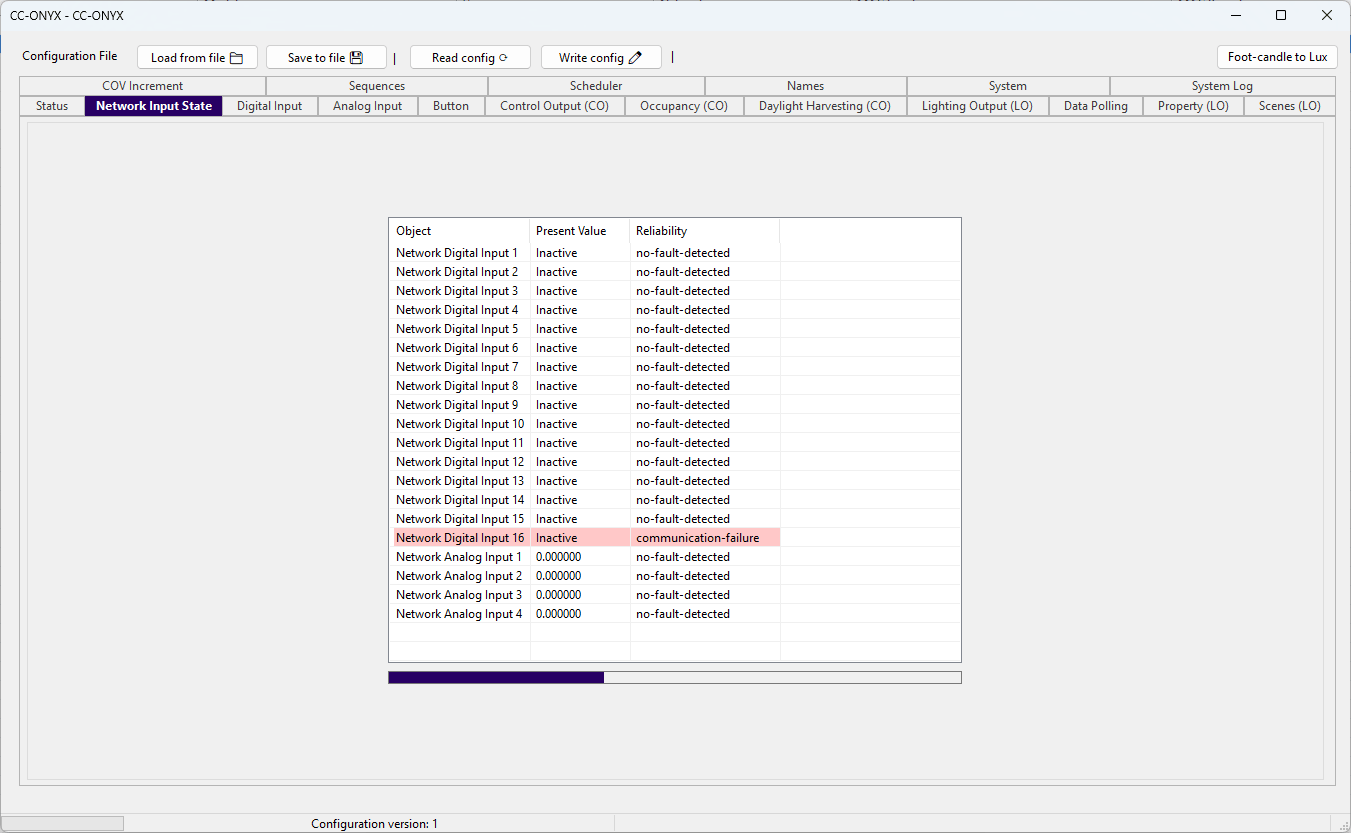

BACnet Browser CC-ONYX Network Input State tab

The Network Input State tab shows a live view of the network input objects. These inputs receive their value over the BACnet network from other controllers. Values refresh automatically while the tab is open. A row turns red when the input reports a fault.

The list holds 16 network digital inputs (Network Digital Input 1 to Network Digital Input 16) and 4 network analog inputs (Network Analog Input 1 to Network Analog Input 4).

ColumnDescription
ObjectName of the network input object.
Present ValueCurrent value. Active or Inactive for digital inputs, a number for analog inputs.
ReliabilityReliability state of the input. no-fault-detected is normal. Any other value, such as communication-failure, indicates a problem receiving the value over the network.
