Overview

General Description​

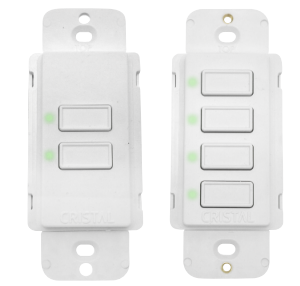

CCSW-BN network wall switch

The CCSW-BN networked wall switch by Cristal Controls has been designed to transmit commands on a BACnet MS/TP network. It connects natively to a BACnet MS/TP network and is compatible with any BACnet device or controller, making it suitable for both small and large-scale projects.

The wall switch controls up to four logical dimmers and can share their levels with other switches and controllers on the network. When used with Cristal Controls dimming panels, its LEDs indicate the current dimming level.

Features​

  • Native BACnet MS/TP, compatible with any BACnet device or controller.
  • Supports subscription with the BACnet Change of Value (COV) service.
  • Designed to fit standard Decora-style light switch plate covers.
  • Available in 2-button and 4-button versions.
  • Switches can be configured in groups so several switches follow each other.
  • LEDs indicate dimming levels when used with Cristal Controls dimming panels.
  • LEDs can be controlled over BACnet to display on/off states or blink patterns.
