Typical Wirings

Typical Wirings​

The following wirings are examples only. Also refer to the connected accessories documentation for their complete specifications and wiring requirements.

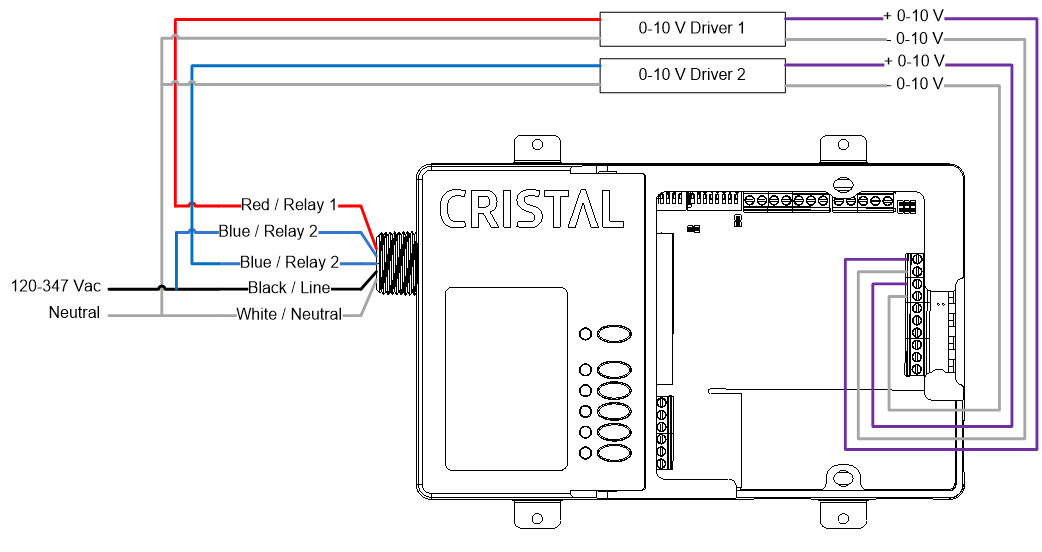

0-10 V Drivers Wiring (Independent Circuit)​

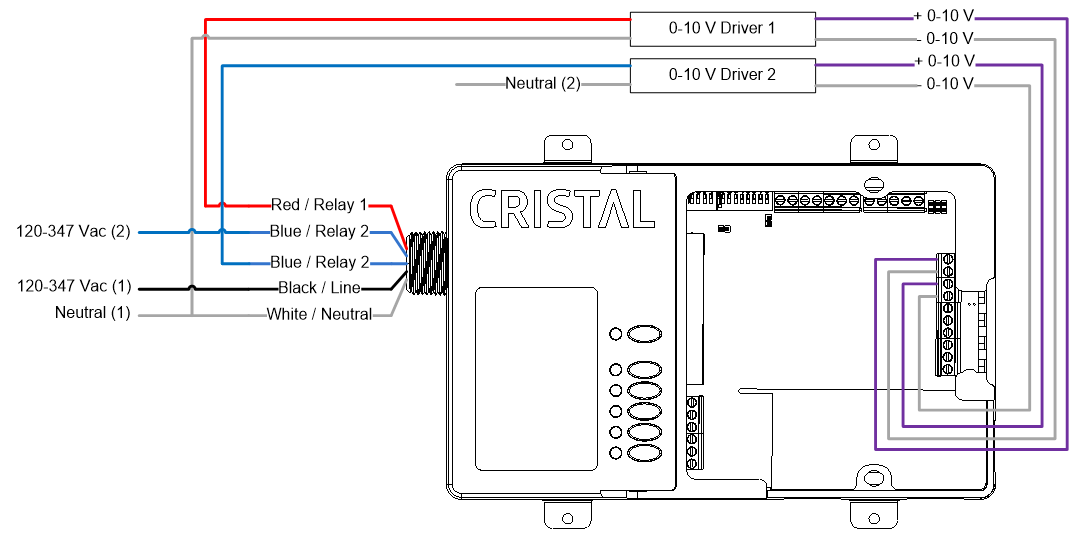

0-10 V Drivers Wiring (Single Neutral)​

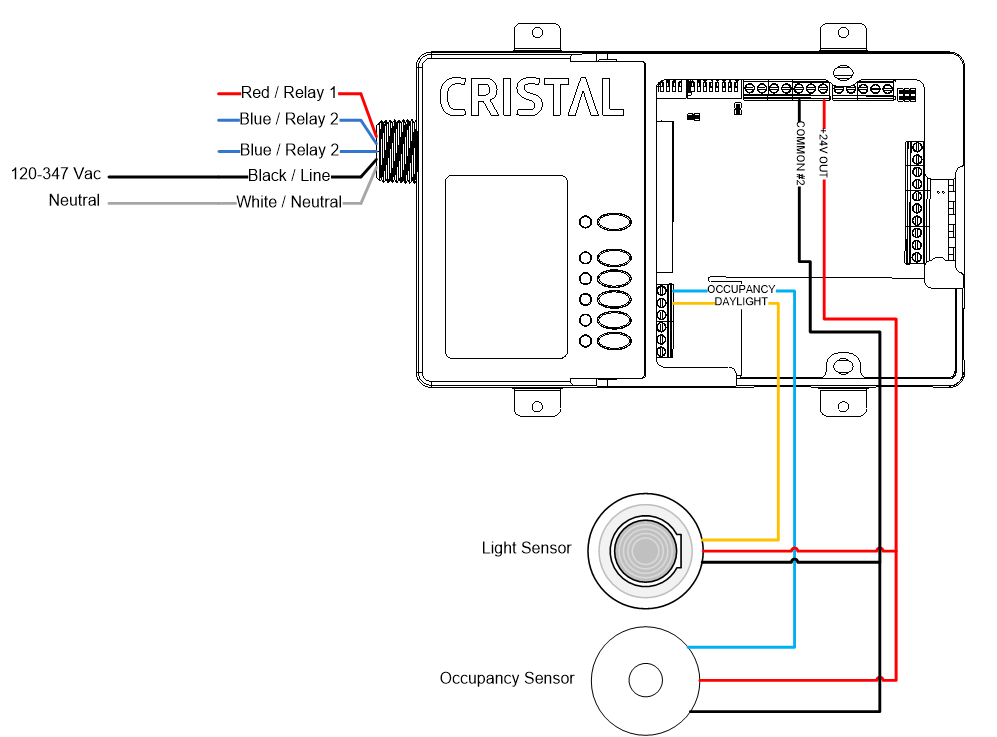

Sensors Wiring​

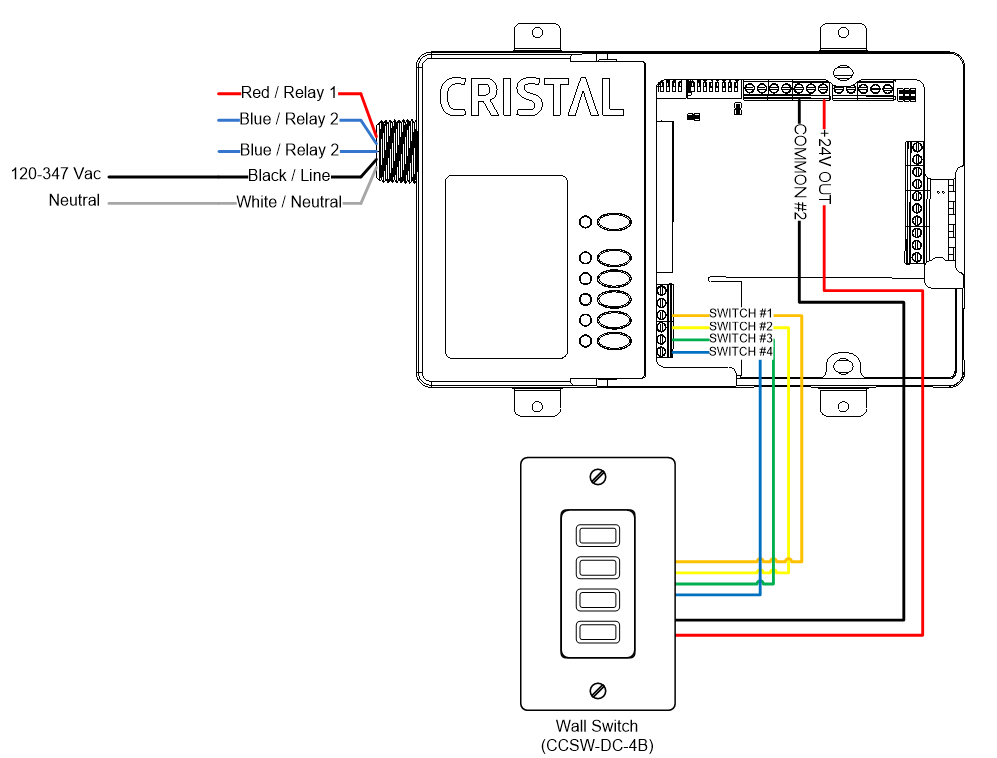

Wall Switch Wiring​

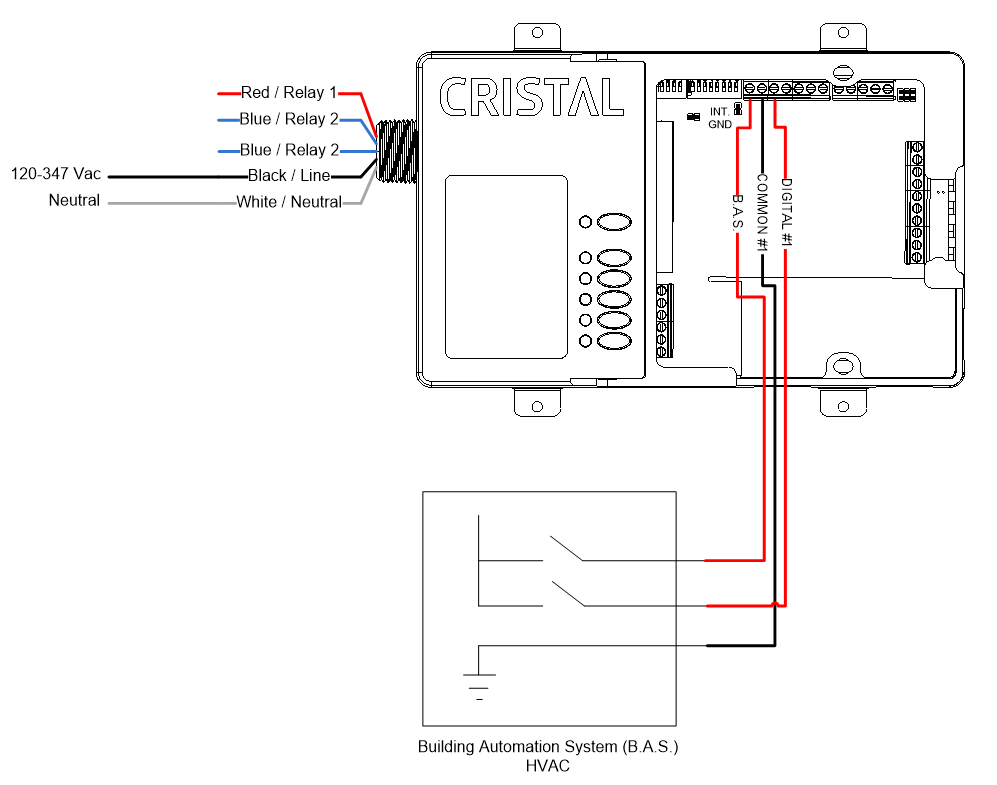

Dry Contact Input (Independent Common) Wiring​

The inputs DI7 - AUX IN 2 and DI6 - AUX IN 1 can be used with an independent common. When used with an independent common, do not install the jumper INT. GND.

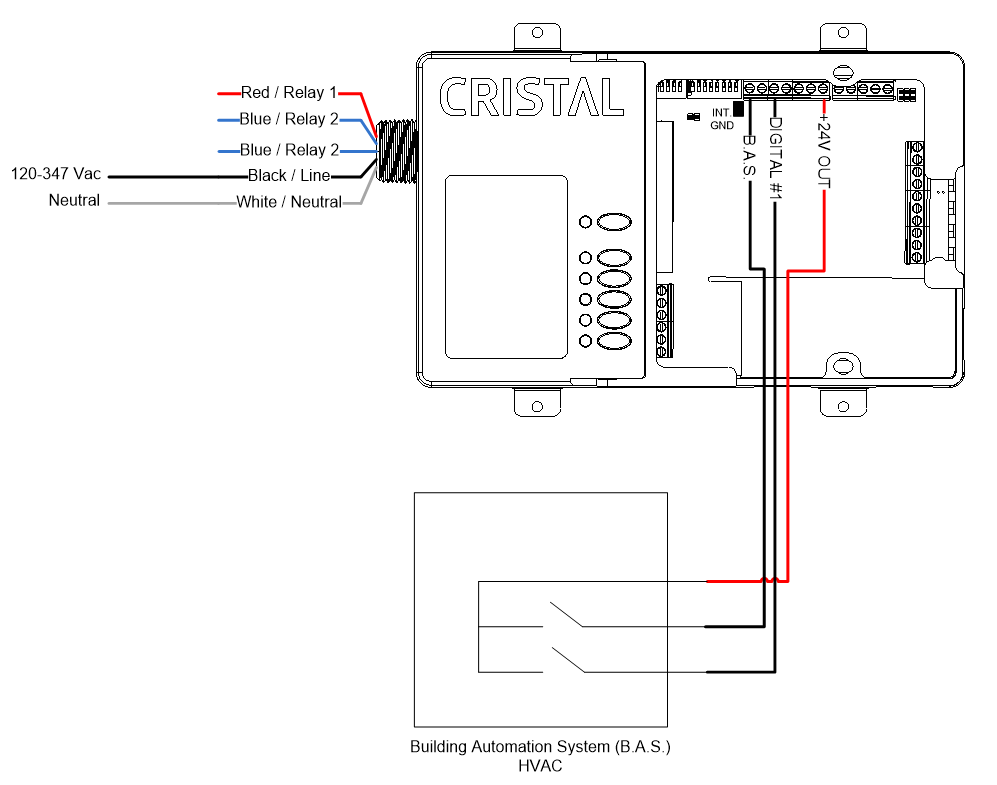

Dry Contact Input (Internal Common) Wiring​

The inputs DI7 - AUX IN 2 and DI6 - AUX IN 1 can be used with an independent common. When used with the internal common install the jumper INT. GND.

Dry Contact Input #2 Wiring​

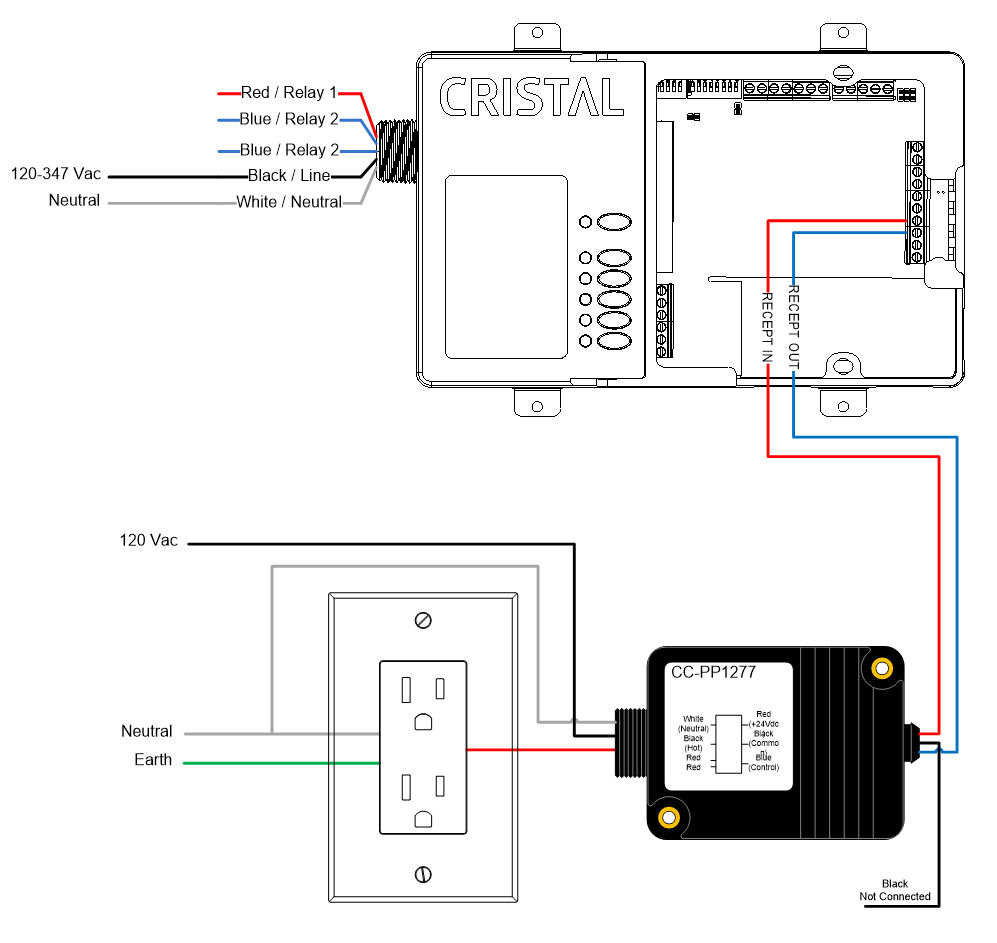

Dry Contact Output Receptacle Wiring​

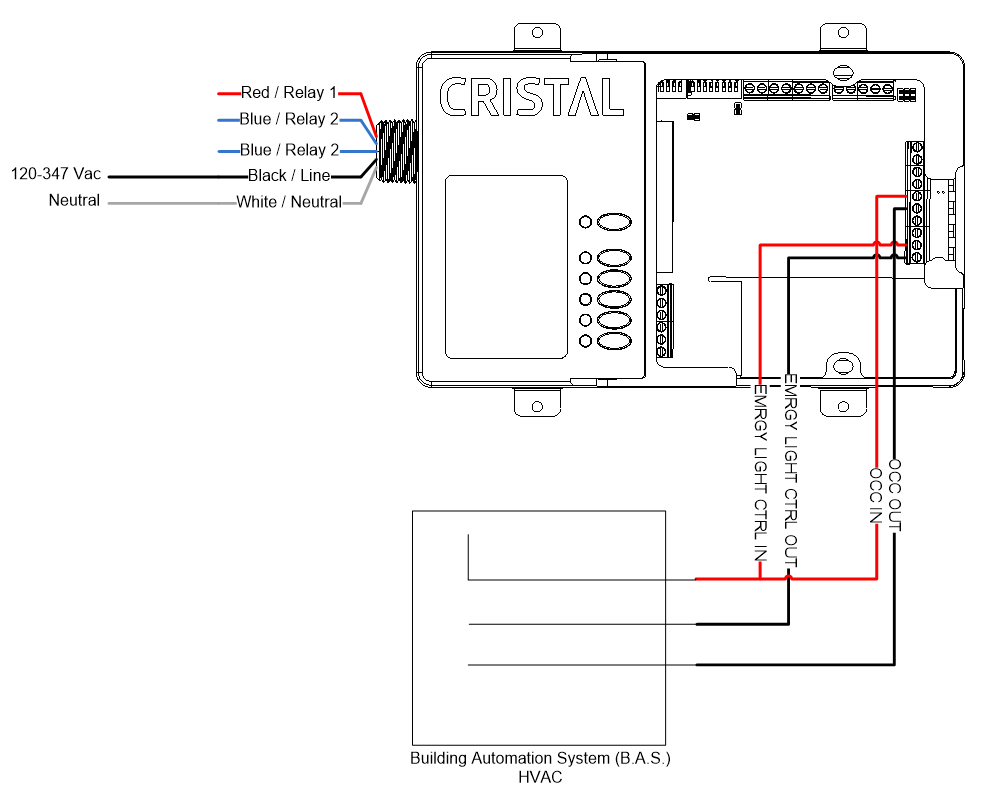

Dry Contact Outputs Wiring​

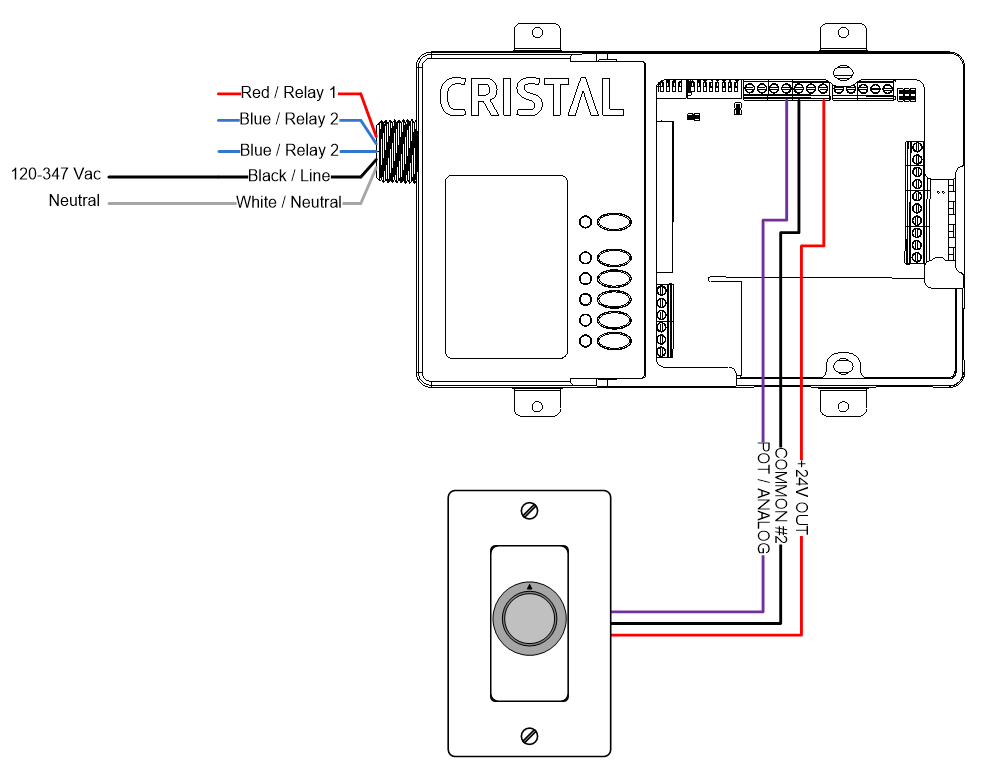

Potentiometer Wiring​

The input AI2 - DAYLIGHT 2 is to be used with a 0-10 Vdc analog signal.

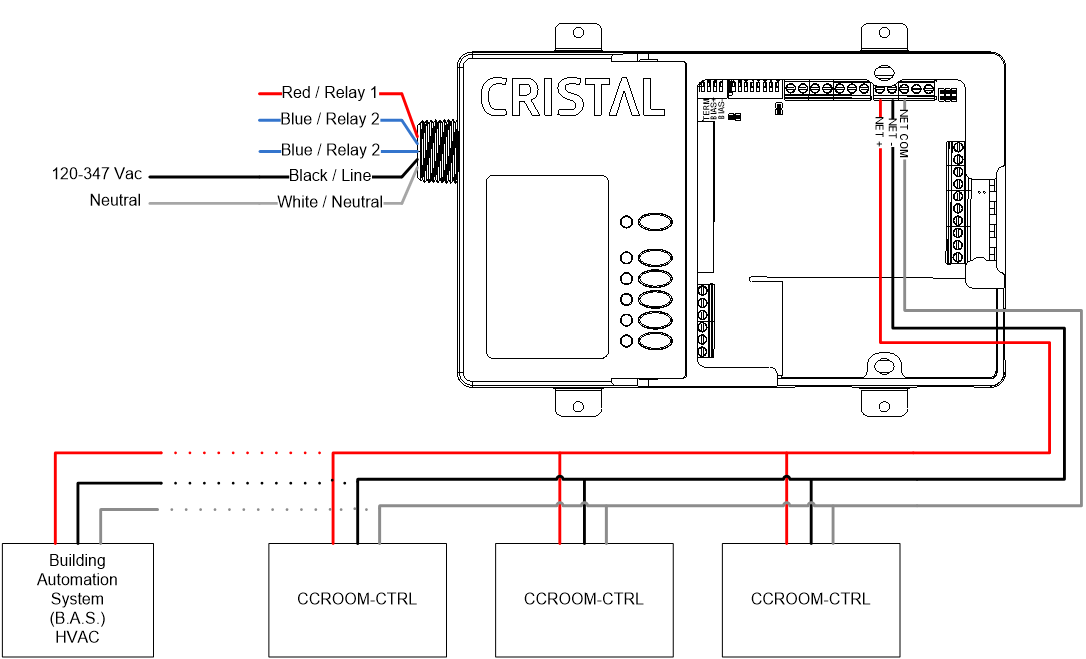

BACnet MS/TP Wiring​

See the section BACnet MS/TP, for selecting the appropriate cable and wiring of a BACnet MS/TP network.

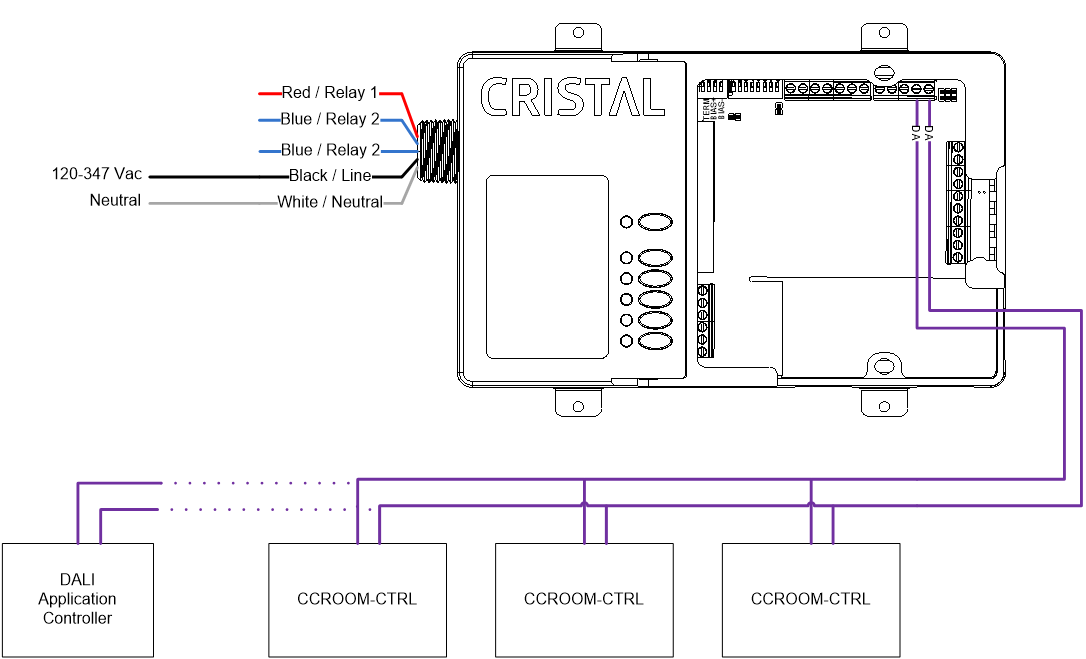

DALI Wiring​

See the section DALI, for selecting the appropriate cable and wiring of a DALI network.
