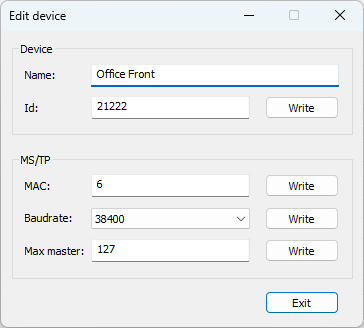

Modify Device
The Modify Device dialog lets you change the BACnet identity and MS/TP settings of the selected controller. Each field has its own Write button that sends only that value to the controller.
Device
| Field | Description |
|---|---|
| Name | BACnet device name. |
| Id | BACnet Device instance number. It must be unique on the network. |
MS/TP
| Field | Description |
|---|---|
| MAC | MS/TP MAC address of the controller (0 to 127). It must be unique on the segment. |
| Baudrate | MS/TP communication speed. It must match the rest of the segment. |
| Max master | Highest MAC address polled for the token on the segment. |
