Hardware specifications

• Microcontroller: Freescale MCF51QE128
• Communication: DALI, RS-485 / BACnet MSTP.
• Supply Voltage: 24 Vac
• Supply Current: 100 mA (excluding accessories)
• Operating temperature: 10 ºC to 45 ºC (50 ºF to 113 ºF)
• Storage temperature: -30 ºC to 80 ºC (-22 ºF to 176 ºF)

Inputs

• 3x Digital inputs (for 2 buttons and 1 occupancy sensor), 24 Vac or 24 Vdc signals.
• 1x Analog 0-10 Vdc input for a light sensor or a potentiometer.

Outputs

• 1x Rectified 24Vac for 3 Panasonic WR-6161 latching relays.
• 1x dry contact NO, 100 mA @ 24 Vac / 24 Vdc
• 1x Analog 0-10 Vdc
  • Sink: 50 Advance "Mark 7" ballasts
  • Source: max 10 mA
• 1x 24 Vdc output to provide the signal for the button inputs.

Jumpers

• Term.: 120Ω RS-485 terminations.
• JP2: Configuration.
• JP3: Configuration.
• JP4: Reset device configuration.

Communication

• DALI: 2 mA Load
• BACnet MSTP: Isolated RS-485, ¼ Load

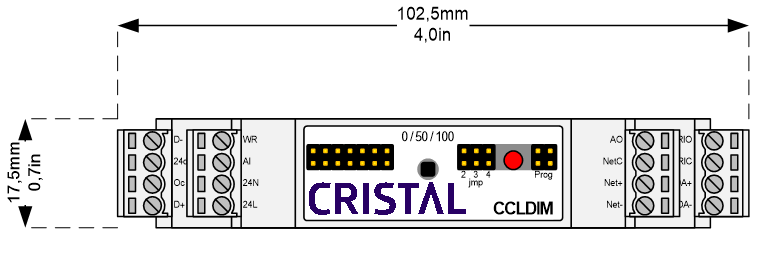

Dimensions
