Installation

ELECTRICAL RISK

Turn off the power supply before the beginning of the installation. Otherwise, it can cause electrical shocks and damage the equipment.

Terminal identification

Signal	Description
24L	Positive (hot) power supply input terminal.
24N	Negative (neutral) power supply input terminal.
Net +	RS-485 communication, positive terminal.
Net Com	RS-485 communication, common.
Net -	RS-485 communication, negative terminal.

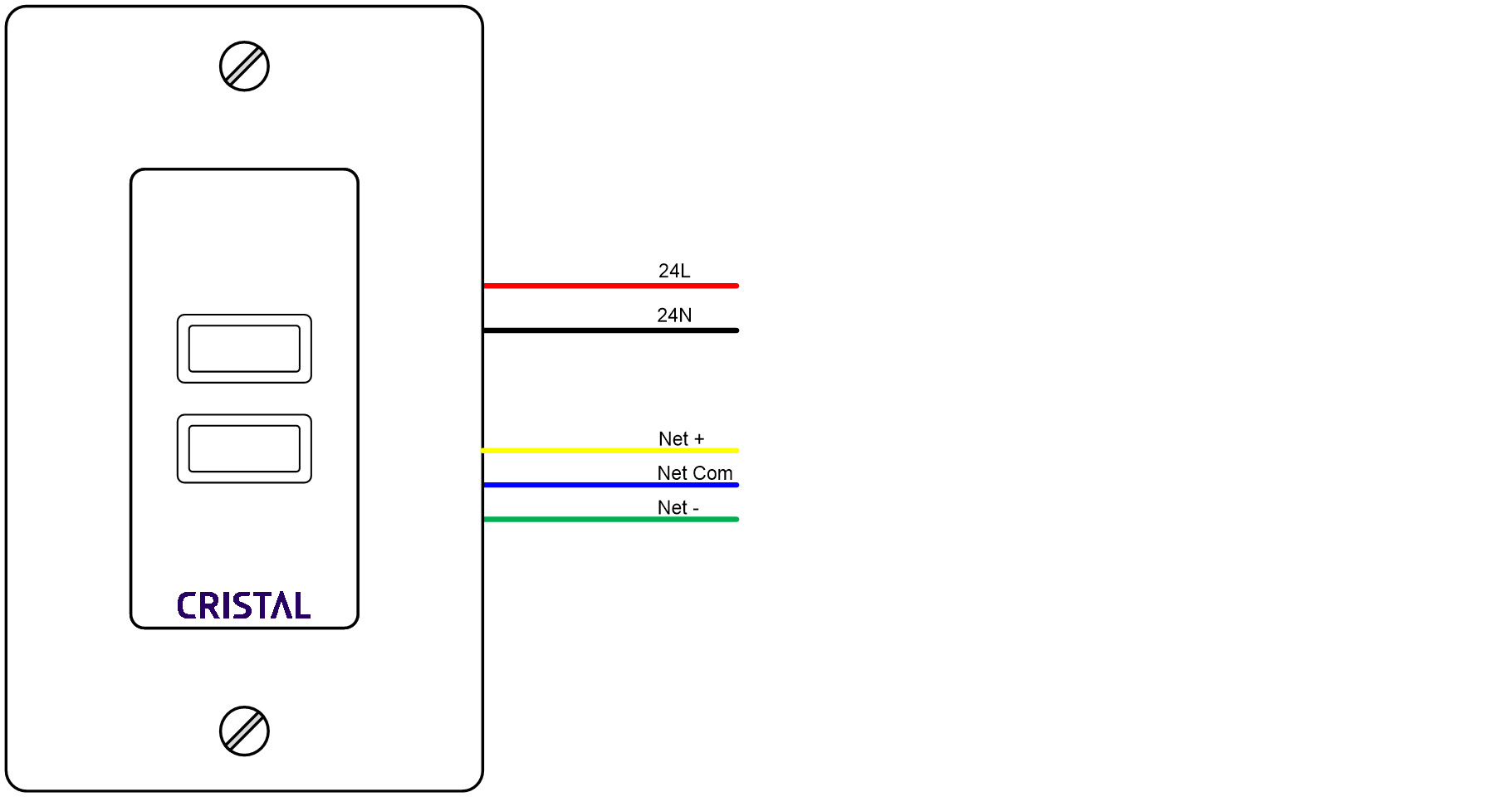

Connections

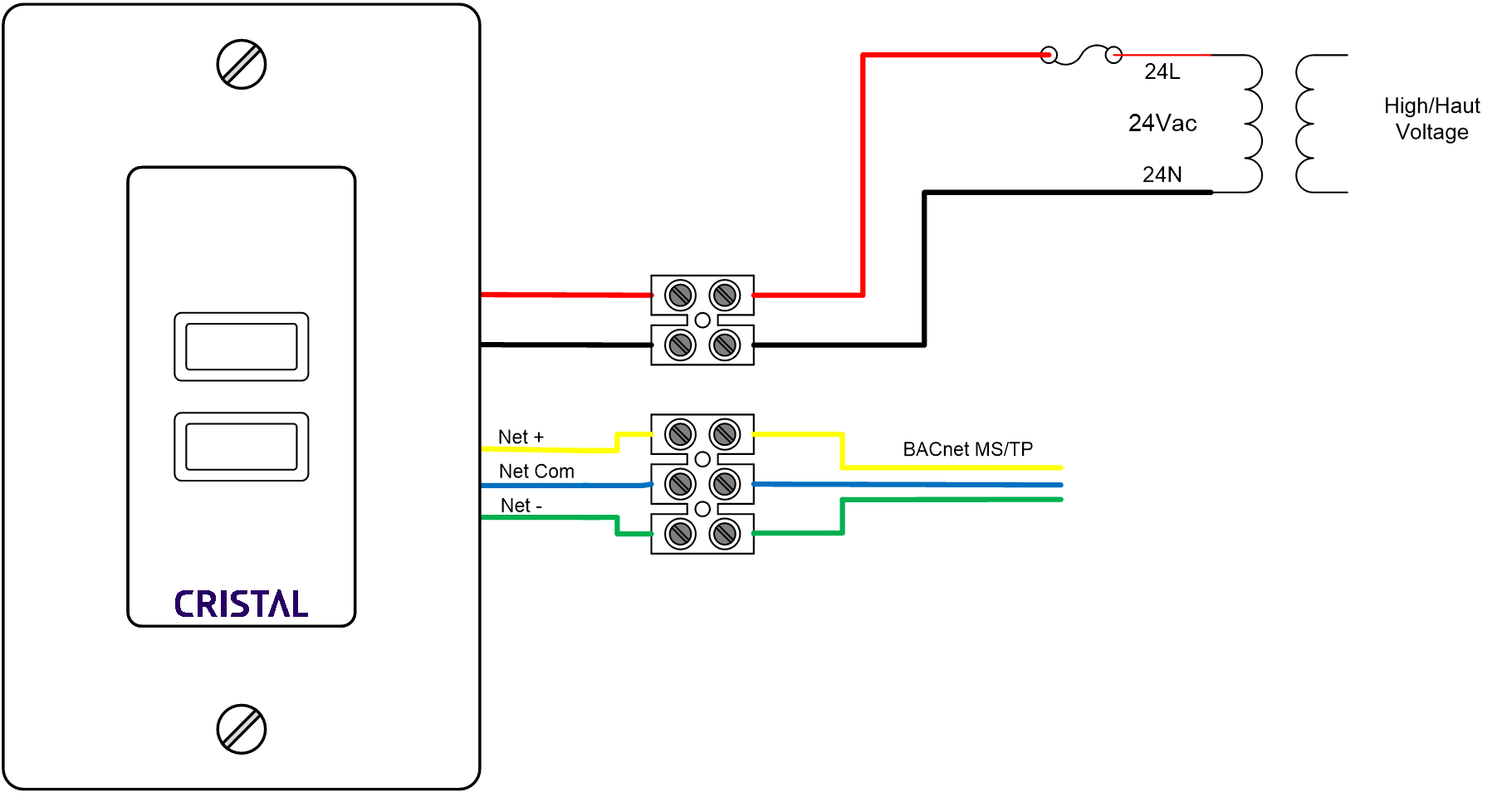

Wiring
